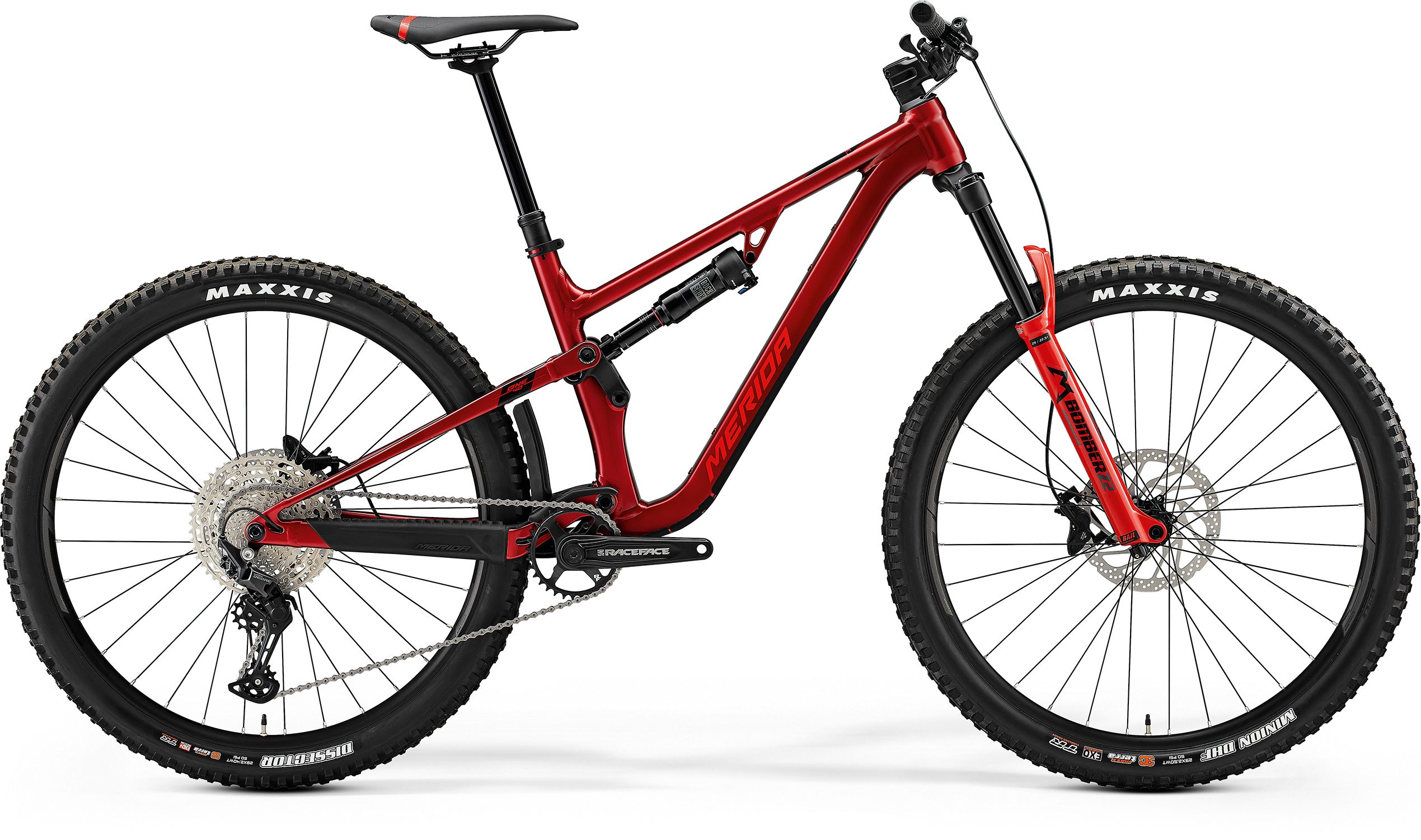

RockShox Deluxe Select+ shock with 150mm Marzocchi Z2 fork, 1 x 11 Shimano Deore drivetrain with Race Face Ride chainset. Shimano Deore 4 pot hydraulic disc brakes and dropper post.
Trail riding is all about going further, Faster than ever before. The all-new One-Forty 500 positively encourages you to do that thanks to an all-aluminium frame with radical new trail geometry thats equally happy cleaning the toughest climbs as it is ripping down high-mountain trails.
Theres no point getting out there if you cant get back, which is why weve fitted high-value kit that delivers solid performance. Marzocchi and RockShox take care of the suspension, while a wide-range Shimano 11-speed drivetrain turns your effort into go and four-piston brakes turn the lightest touch into slow. The new Merida One-Forty is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. With Meridas new Agilometer sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. Meridas enginners have focussed on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, Wire Port cable routing and a reliable threaded bottom bracket plus carbon frame models have on-board tool storage and FidLock magnetic bottle cages.
Highlights:
- Full aluminium frame with FAST kinematic suspension and Agilometer sizing
- Radical new trail geometry with full 29er wheels
- 200mm dropper post on XL/L/M, 150mm on S, 125mm on XS
- Marzocchi and RockShox suspension, 150mm front, 143mm rear
- Wide-range Shimano 11-speed drivetrain
- Powerful 4-piston hydraulic disc brakes
| Frame |
Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5
|
| Shock |
RockShox Deluxe Select+; lockout
|
| Fork |
Marzocchi Z2; Air; 150mm travel; Tapered; 44mm fork offset; Max. tyre size: 29 x 2.5
|
| Gears |
11 |
| Shifters |
Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever
|
| Rear Derailleur |
Shimano Deore M5100 Shadow+ SGS |
| Bottom Bracket |
Race Face BSA 68/73 – 24mm |
| Chain |
KMC X11
|
| Chainset |
Race Face Ride; 32 tooth chainset. Crank length: 170mm-S, 175mm-M up |
| Cassette |
Shimano Deore M5100; 11-51 teeth; 11 speed |
| Brake Lever |
Shimano Deore M6120
|
| Front Brake |
Shimano Deore M6120; 4 piston hydraulic disc brake caliper with Shimano RT30; 203mm rotor |
| Rear Brake |
Shimano Deore M6120; 4 piston hydraulic disc brake caliper with Shimano RT30; 203mm rotor |
| Grip |
Merida Expert EC
|
| Handlebar |
Merida Team; TR; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise |
| Stem |
Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point. |
| Headset |
Merida 8158 1-1/8-1.5 cartridge bearing |
| Pedal |
Not Included |
| Saddle |
Merida Comp SL; V-mount
|
| Seatpost |
Merida Expert TR II; 34.9mm diameter; in-line; Drop: 125mm (XS), 150mm (S), 200mm (M/L/XL) |
| Wheel Size |
29 / 27.5 |
| Rims |
Merida Comp TR; 29mm inner rim width; Aluminium. Tubeless ready (tubeless tape and valves not included) |
| Spokes |
Black stainless |
| Front Hub |
Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
| Rear Hub |
Shimano MT400-B; 148x12mm; 32 spokes; Center lock. With Merida Comp TR axle including removable lever, 6mm allen key |
| Front Tyre |
Maxxis Minion DHF; 29 x 2.5; Kevlar bead, folding; TR EXO 3C MaxxTera |
| Rear Tyre |
Maxxis Dissector; 29 x 2.4; Kevlar bead, folding; TR EXO+ MaxxTerra |
