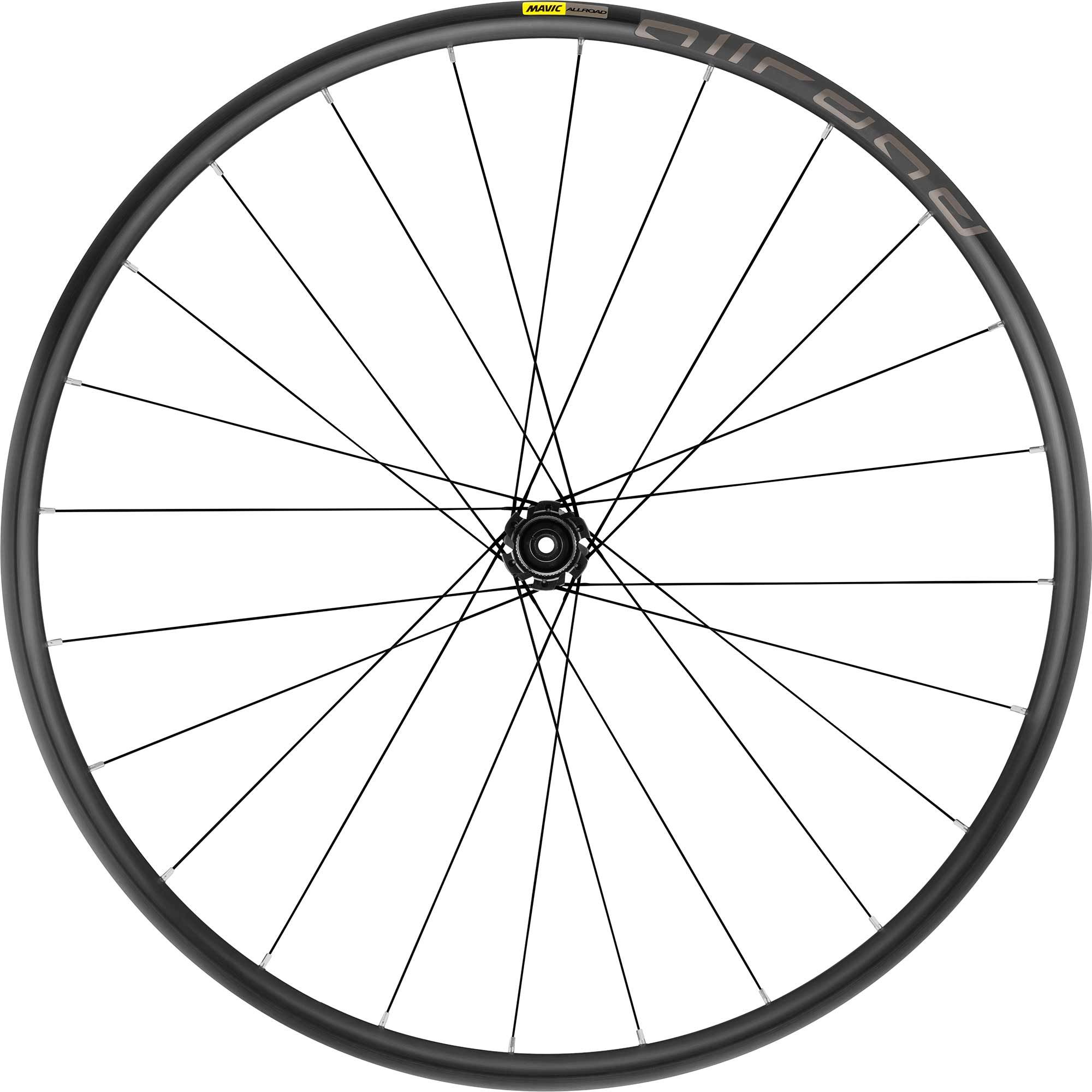

Mavic Allroad Disc Cl Front Wheel

Product ID: 90790_

This tough and dependable gravel wheel gives you the confidence you need to tackle rugged, adventurous roads with smooth control, with a wide 23mm rim profile thats optimized for high-volume UST Tubeless tyres, this wheel system is built for adventure.

Purpose built for riding rough roads, gravel or dirt.

• 23mm wide rim takes tyres up to 62mm.
• UST Tubeless technology improves comfort and rolling resistance, and reduces the risk of punctures.
• Compatible with all standard retention systems.

Proven performance and reliability at an attainable cost.

• High quality QRM cartridge bearings.
• Disc brake specific, sleeved style rim technology.
• Straight pull round spokes, which are stronger than J-bend spokes.

Rolling efficiency and nimble ride quality

• Sleeve joint rim minimizes weight.
• Consistent and stable spoke lacing.
• Low friction hubs.

Weight: 1890g

Understanding the different Mavic freehub body acronyms:

• HG or M11 – Shimano HG Road 11/12x (other speeds with spacer)
• MS - Shimano Microspline
• XD - SRAM XD
• XD-R - SRAM XD-R
• ED11 - Campagnolo 9/12x
• N3W - Campagnolo 13x

ADDITIONAL INFORMATION

Perfect for riding on rough roads, gravel or dirt, Allroad gives you the smooth-riding performance of tubeless tyres and makes it easy to set them up without any hassles. Low rolling resistance and a reduced risk of punctures add up to a better overall riding experience, especially on rugged terrain.

The wheels are engineered for the unique demands of disc brakes, built up with 24 straight-pull spokes, which are stronger than J-bend spokes. So wherever the road goes, and however rough it gets, youre ready to keep things rolling.

Instant Drive 360 technology

Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

UST tubeless technology

Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

QRM Auto Bearing Preload Technology

Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

Technical Specifications:

• Profile depth: 22mm
• Inner width: 23mm
• Front axle: 12x100mm
• Rear axle: 12x142mm
• Discipline: Gravel
• Spokes: Steel, Straight, round
• Rim Diameter: 700c
• Nipples: Steel ABS Black
• Rim material: S6000 Aluminium
• Tyre compatibility: UST Tubeless Ready Use with Mavic Tubeless Tape
• Maximum weight: 135kg including bike
• Braking system: Centre Lock Only
• Bearings: QRM automatic setting sealed cartridge
• ETRTO Size: 622x23TC
• Weight: 1890g

Whats in the box?

• Wheelset
• User guide
• Rim tape mounted on wheel
• UST Valve not mounted on the wheel
• Front and Rear Axle Adaptors 12x100/142 to 9x100/135

Intended Use

• Minimum tyre size: width 28mm - pressure max. 5.5Bar/80PSI
• Maximum tyre size: width 64mm - pressure max. 3.25Bar/47PSI
• ASTM category 2 : road and offroad with jumps less than 15cm
